POLY 4007-TC

Catégorie: Alésage
Sous-catégorie: Alésoirs en carbure monobloc
Ø: 0.37 - 12.02
Revêtement: Sans
Z: 3 / 4 / 6

Description: • Alésoirs carbure monoblocs à hélice à gauche, coupe à droite, denture irrégulière et arrosage central développés pour l'alésage de trous traversants dans tous types de matières. • Evacuation des copeaux vers l'avant favorisée par l'hélice à gauche. • Tout Ø avec tolérance ±2 µm livrable sur demande via notre service rapide

Matières à usiner

Acier + Pb

Acier faibl. allié

Acier fort. allié

Acier inox. aust,

Fontes

Super alliages Ni / Co

Titane

Alliage Cu

Alliage Cu difficile

Alu

Plastique

Argent

Caractéristiques

Produits

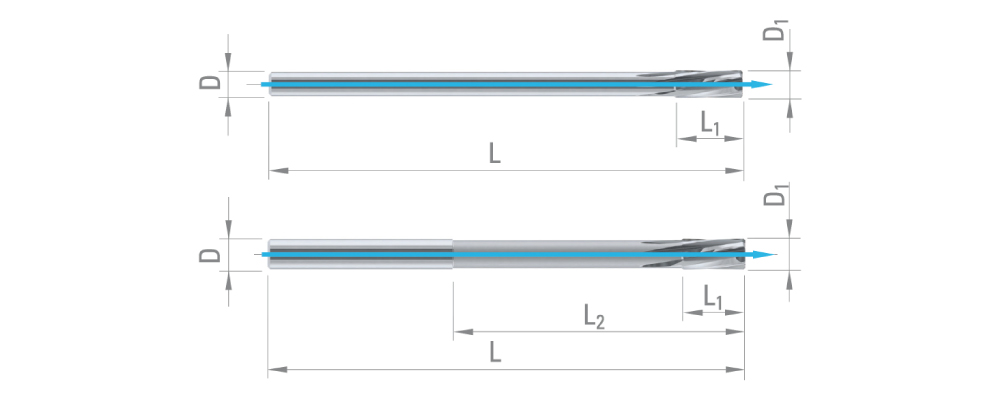

D1

L1

L2

D

L

Z

Revêtement

Réf.	D1	L1	L2	D	L	Z	Tol	Revêtement
983079	0.37	3	5	3	38	3	+0.003/0	Sans
326999	0.38	3	5	3	38	3	+0.003/0	Sans
969543	0.39	3	5	3	38	3	+0.003/0	Sans
200716	0.4	3	5	3	38	3	+0.003/0	Sans
963823	0.41	3	5	3	38	3	+0.003/0	Sans
200717	0.42	3	5	3	38	3	+0.003/0	Sans
327000	0.43	3	5	3	38	3	+0.003/0	Sans
200718	0.44	3	5	3	38	3	+0.003/0	Sans
965207	0.45	3	5	3	38	3	+0.003/0	Sans
200719	0.46	3	5	3	38	3	+0.003/0	Sans
327001	0.47	3	5	3	38	3	+0.003/0	Sans
200720	0.48	3	5	3	38	3	+0.003/0	Sans
963716	0.49	3	5	3	38	3	+0.003/0	Sans
200746	0.5	3	5	3	38	3	+0.003/0	Sans
200745	0.51	4	6	3	38	3	+0.003/0	Sans
200738	0.52	4	6	3	38	3	+0.003/0	Sans
200742	0.53	4	6	3	38	3	+0.003/0	Sans
200743	0.54	4	6	3	38	3	+0.003/0	Sans
200739	0.55	4	6	3	38	3	+0.003/0	Sans
968834	0.56	4	6	3	38	3	+0.003/0	Sans
973253	0.57	4	6	3	38	3	+0.003/0	Sans
200741	0.58	4	6	3	38	3	+0.003/0	Sans
200744	0.59	4	6	3	38	3	+0.003/0	Sans
200740	0.6	4	6	3	38	3	+0.003/0	Sans
964652	0.61	4	7	3	38	3	+0.003/0	Sans
200750	0.62	4	7	3	38	3	+0.003/0	Sans
327002	0.63	4	7	3	38	3	+0.003/0	Sans
200755	0.64	4	7	3	38	3	+0.003/0	Sans
200748	0.65	4	7	3	38	3	+0.003/0	Sans
200752	0.66	4	7	3	38	3	+0.003/0	Sans
200753	0.67	4	7	3	38	3	+0.003/0	Sans
200751	0.68	4	7	3	38	3	+0.003/0	Sans
200754	0.69	4	7	3	38	3	+0.003/0	Sans
200749	0.7	4	7	3	38	3	+0.003/0	Sans
965167	0.71	4	8	3	38	3	+0.003/0	Sans
200758	0.72	4	8	3	38	3	+0.003/0	Sans
327003	0.73	4	8	3	38	3	+0.003/0	Sans
200762	0.74	4	8	3	38	3	+0.003/0	Sans
200756	0.75	4	8	3	38	3	+0.003/0	Sans
327004	0.76	4	8	3	38	3	+0.003/0	Sans
200760	0.77	4	8	3	38	3	+0.003/0	Sans
200759	0.78	4	8	3	38	3	+0.003/0	Sans
200761	0.79	4	8	3	38	3	+0.003/0	Sans
200757	0.8	4	8	3	38	3	+0.003/0	Sans
965168	0.81	5	9	3	38	3	+0.003/0	Sans
200765	0.82	5	9	3	38	3	+0.003/0	Sans
200769	0.83	5	9	3	38	3	+0.003/0	Sans
200768	0.84	5	9	3	38	3	+0.003/0	Sans
200763	0.85	5	9	3	38	3	+0.003/0	Sans
200770	0.86	5	9	3	38	3	+0.003/0	Sans
200771	0.87	5	9	3	38	3	+0.003/0	Sans
200766	0.88	5	9	3	38	3	+0.003/0	Sans
200767	0.89	5	9	3	38	3	+0.003/0	Sans
200764	0.9	5	9	3	38	3	+0.003/0	Sans
200733	0.91	5	10	3	38	3	+0.003/0	Sans
200729	0.92	5	10	3	38	3	+0.003/0	Sans
327005	0.93	5	10	3	38	3	+0.003/0	Sans
327006	0.94	5	10	3	38	3	+0.003/0	Sans
200728	0.95	5	10	3	38	3	+0.003/0	Sans
200730	0.96	5	10	3	38	3	+0.003/0	Sans
200731	0.97	5	10	3	38	3	+0.003/0	Sans
200726	0.98	5	10	3	38	3	+0.003/0	Sans
200727	0.99	5	10	3	38	3	+0.003/0	Sans
200732	1	5	10	3	38	3	+0.003/0	Sans
200715	1.01	5	11	3	38	3	+0.003/0	Sans
200772	1.02	5	11	3	38	3	+0.003/0	Sans
967191	1.03	5	11	3	38	3	+0.003/0	Sans
327007	1.04	5	11	3	38	3	+0.003/0	Sans
200773	1.05	5	11	3	38	3	+0.003/0	Sans
327008	1.06	5	11	3	38	3	+0.003/0	Sans
327009	1.07	5	11	3	38	3	+0.003/0	Sans
200774	1.08	5	11	3	38	3	+0.003/0	Sans
965169	1.09	5	11	3	38	3	+0.003/0	Sans
200777	1.1	5	11	3	38	3	+0.003/0	Sans
327010	1.11	5	12	3	38	3	+0.003/0	Sans
327011	1.12	5	12	3	38	3	+0.003/0	Sans
327012	1.13	5	12	3	38	3	+0.003/0	Sans
327013	1.14	5	12	3	38	3	+0.003/0	Sans
200775	1.15	5	12	3	38	3	+0.003/0	Sans
327014	1.16	5	12	3	38	3	+0.003/0	Sans
327015	1.17	5	12	3	38	3	+0.003/0	Sans
63965	1.18	5	12	3	38	3	+0.003/0	Sans
327016	1.19	5	12	3	38	3	+0.003/0	Sans
200776	1.2	5	12	3	38	3	+0.003/0	Sans
965171	1.21	6	13	3	38	3	+0.003/0	Sans
327017	1.22	6	13	3	38	3	+0.003/0	Sans
327018	1.23	6	13	3	38	3	+0.003/0	Sans
327019	1.24	6	13	3	38	3	+0.003/0	Sans
200778	1.25	6	13	3	38	3	+0.003/0	Sans
963588	1.26	6	13	3	38	3	+0.003/0	Sans
972014	1.27	6	13	3	38	3	+0.003/0	Sans
200780	1.28	6	13	3	38	3	+0.003/0	Sans
327020	1.29	6	13	3	38	3	+0.003/0	Sans
200779	1.3	6	13	3	38	3	+0.003/0	Sans
967299	1.31	6	13	3	38	3	+0.003/0	Sans
327021	1.32	6	13	3	38	3	+0.003/0	Sans
327022	1.33	6	13	3	38	3	+0.003/0	Sans
973390	1.34	6	13	3	38	3	+0.003/0	Sans
200734	1.35	6	13	3	38	3	+0.003/0	Sans
327023	1.36	6	13	3	38	3	+0.003/0	Sans
327024	1.37	6	13	3	38	3	+0.003/0	Sans
327025	1.38	6	13	3	38	3	+0.003/0	Sans
327026	1.39	6	13	3	38	3	+0.003/0	Sans
200735	1.4	6	13	3	38	3	+0.003/0	Sans
327027	1.41	7	15	3	38	3	+0.003/0	Sans
327028	1.42	7	15	3	38	3	+0.003/0	Sans
327029	1.43	7	15	3	38	3	+0.003/0	Sans
327030	1.44	7	15	3	38	3	+0.003/0	Sans
200783	1.45	7	15	3	38	3	+0.003/0	Sans
327031	1.46	7	15	3	38	3	+0.003/0	Sans
327032	1.47	7	15	3	38	3	+0.003/0	Sans
200781	1.48	7	15	3	38	3	+0.003/0	Sans
200782	1.49	7	15	3	38	3	+0.003/0	Sans
200784	1.5	7	15	3	38	3	+0.003/0	Sans
200787	1.51	7	15	3	50	3	+0.003/0	Sans
200788	1.52	7	15	3	50	3	+0.003/0	Sans
327033	1.53	7	15	3	50	3	+0.003/0	Sans
327034	1.54	7	15	3	50	3	+0.003/0	Sans
200692	1.55	7	15	3	50	3	+0.003/0	Sans
976176	1.56	7	15	3	50	3	+0.003/0	Sans
964655	1.57	7	15	3	50	3	+0.003/0	Sans
63966	1.58	7	15	3	50	3	+0.003/0	Sans
965174	1.59	7	15	3	50	3	+0.003/0	Sans
200794	1.6	7	15	3	50	3	+0.003/0	Sans
965175	1.61	7	16	3	50	3	+0.003/0	Sans
327035	1.62	7	16	3	50	3	+0.003/0	Sans
327036	1.63	7	16	3	50	3	+0.003/0	Sans
327037	1.64	7	16	3	50	3	+0.003/0	Sans
200691	1.65	7	16	3	50	3	+0.003/0	Sans
327038	1.66	7	16	3	50	3	+0.003/0	Sans
327039	1.67	7	16	3	50	3	+0.003/0	Sans
327040	1.68	7	16	3	50	3	+0.003/0	Sans
965209	1.69	7	16	3	50	3	+0.003/0	Sans
200693	1.7	7	16	3	50	3	+0.003/0	Sans
327041	1.71	7	17	3	50	3	+0.003/0	Sans
327042	1.72	7	17	3	50	3	+0.003/0	Sans
327043	1.73	7	17	3	50	3	+0.003/0	Sans
327044	1.74	7	17	3	50	3	+0.003/0	Sans
200694	1.75	7	17	3	50	3	+0.003/0	Sans
327045	1.76	7	17	3	50	3	+0.003/0	Sans
327046	1.77	7	17	3	50	3	+0.003/0	Sans
327047	1.78	7	17	3	50	3	+0.003/0	Sans
200713	1.79	7	17	3	50	3	+0.003/0	Sans
200795	1.8	7	17	3	50	3	+0.003/0	Sans
327048	1.81	8	17	3	50	3	+0.003/0	Sans
327049	1.82	8	17	3	50	3	+0.003/0	Sans
971471	1.83	8	17	3	50	3	+0.003/0	Sans
327050	1.84	8	17	3	50	3	+0.003/0	Sans
200796	1.85	8	17	3	50	3	+0.003/0	Sans
972720	1.86	8	17	3	50	3	+0.003/0	Sans
964530	1.87	8	17	3	50	3	+0.003/0	Sans
971918	1.88	8	17	3	50	3	+0.003/0	Sans
200704	1.89	8	17	3	50	3	+0.003/0	Sans
20079	1.9	8	17	3	50	3	+0.003/0	Sans
965177	1.91	8	18	3	50	3	+0.003/0	Sans
327051	1.92	8	18	3	50	3	+0.003/0	Sans
327052	1.93	8	18	3	50	3	+0.003/0	Sans
327053	1.94	8	18	3	50	3	+0.003/0	Sans
200682	1.95	8	18	3	50	3	+0.003/0	Sans
200712	1.96	8	18	3	50	3	+0.003/0	Sans
200789	1.97	8	18	3	50	3	+0.003/0	Sans
200790	1.98	8	18	3	50	3	+0.003/0	Sans
200791	1.99	8	18	3	50	3	+0.003/0	Sans
200785	2	8	18	3	50	3	+0.003/0	Sans
200792	2.01	8	18	3	50	3	+0.003/0	Sans
200793	2.02	8	18	3	50	3	+0.003/0	Sans
327054	2.03	8	18	3	50	3	+0.003/0	Sans
200714	2.04	8	18	3	50	3	+0.003/0	Sans
200688	2.05	8	18	3	50	3	+0.003/0	Sans
327055	2.06	8	18	3	50	3	+0.003/0	Sans
327056	2.07	8	18	3	50	3	+0.003/0	Sans
327057	2.08	8	18	3	50	3	+0.003/0	Sans
968093	2.09	8	18	3	50	3	+0.003/0	Sans
200711	2.1	8	18	3	50	3	+0.003/0	Sans
327058	2.11	8	18	3	50	3	+0.003/0	Sans
968735	2.12	8	18	3	50	3	+0.003/0	Sans
327059	2.13	8	18	3	50	3	+0.003/0	Sans
968737	2.14	8	18	3	50	3	+0.003/0	Sans
200687	2.15	8	18	3	50	3	+0.003/0	Sans
327060	2.16	8	18	3	50	3	+0.003/0	Sans
327061	2.17	8	18	3	50	3	+0.003/0	Sans
327062	2.18	8	18	3	50	3	+0.003/0	Sans
967119	2.19	8	18	3	50	3	+0.003/0	Sans
200706	2.2	8	18	3	50	3	+0.003/0	Sans
327063	2.21	8	18	3	50	3	+0.003/0	Sans
327064	2.22	8	18	3	50	3	+0.003/0	Sans
327065	2.23	8	18	3	50	3	+0.003/0	Sans
327066	2.24	8	18	3	50	3	+0.003/0	Sans
200686	2.25	8	18	3	50	3	+0.003/0	Sans
327067	2.26	8	18	3	50	3	+0.003/0	Sans
327068	2.27	8	18	3	50	3	+0.003/0	Sans
327069	2.28	8	18	3	50	3	+0.003/0	Sans
327070	2.29	8	18	3	50	3	+0.003/0	Sans
200698	2.3	8	18	3	50	3	+0.003/0	Sans
327071	2.31	10	20	3	50	3	+0.003/0	Sans
200702	2.32	10	20	3	50	3	+0.003/0	Sans
327072	2.33	10	20	3	50	3	+0.003/0	Sans
327073	2.34	10	20	3	50	3	+0.003/0	Sans
200697	2.35	10	20	3	50	3	+0.003/0	Sans
327074	2.36	10	20	3	50	3	+0.003/0	Sans
327075	2.37	10	20	3	50	3	+0.003/0	Sans
327076	2.38	10	20	3	50	3	+0.003/0	Sans
327077	2.39	10	20	3	50	3	+0.003/0	Sans
200696	2.4	10	20	3	50	3	+0.003/0	Sans
972007	2.41	10	20	3	50	3	+0.003/0	Sans
327078	2.42	10	20	3	50	3	+0.003/0	Sans
327079	2.43	10	20	3	50	3	+0.003/0	Sans
327080	2.44	10	20	3	50	3	+0.003/0	Sans
200695	2.45	10	20	3	50	3	+0.003/0	Sans
327081	2.46	10	20	3	50	3	+0.003/0	Sans
327082	2.47	10	20	3	50	3	+0.003/0	Sans
200707	2.48	10	20	3	50	3	+0.003/0	Sans
200708	2.49	10	20	3	50	3	+0.003/0	Sans
200786	2.5	10	20	3	50	3	+0.003/0	Sans
200709	2.51	10	20	3	61	4	+0.003/0	Sans
200710	2.52	10	20	3	61	4	+0.003/0	Sans
327083	2.53	10	20	3	61	4	+0.003/0	Sans
327084	2.54	10	20	3	61	4	+0.003/0	Sans
200685	2.55	10	20	3	61	4	+0.003/0	Sans
327085	2.56	10	20	3	61	4	+0.003/0	Sans
327086	2.57	10	20	3	61	4	+0.003/0	Sans
327087	2.58	10	20	3	61	4	+0.003/0	Sans
327088	2.59	10	20	3	61	4	+0.003/0	Sans
200684	2.6	10	20	3	61	4	+0.003/0	Sans
327089	2.61	10	25	3	61	4	+0.003/0	Sans
327090	2.62	10	25	3	61	4	+0.003/0	Sans
327091	2.63	10	25	3	61	4	+0.003/0	Sans
327092	2.64	10	25	3	61	4	+0.003/0	Sans
200683	2.65	10	25	3	61	4	+0.003/0	Sans
327093	2.66	10	25	3	61	4	+0.003/0	Sans
200703	2.67	10	25	3	61	4	+0.003/0	Sans
327094	2.68	10	25	3	61	4	+0.003/0	Sans
327095	2.69	10	25	3	61	4	+0.003/0	Sans
200690	2.7	10	25	3	61	4	+0.003/0	Sans
327096	2.71	10	25	3	61	4	+0.003/0	Sans
327097	2.72	10	25	3	61	4	+0.003/0	Sans
327098	2.73	10	25	3	61	4	+0.003/0	Sans
327099	2.74	10	25	3	61	4	+0.003/0	Sans
200689	2.75	10	25	3	61	4	+0.003/0	Sans
327100	2.76	10	25	3	61	4	+0.003/0	Sans
327101	2.77	10	25	3	61	4	+0.003/0	Sans
327102	2.78	10	25	3	61	4	+0.003/0	Sans
327103	2.79	10	25	3	61	4	+0.003/0	Sans
200705	2.8	10	25	3	61	4	+0.003/0	Sans
327104	2.81	10	25	3	61	4	+0.003/0	Sans
327105	2.82	10	25	3	61	4	+0.003/0	Sans
327106	2.83	10	25	3	61	4	+0.003/0	Sans
327107	2.84	10	25	3	61	4	+0.003/0	Sans
200699	2.85	10	25	3	61	4	+0.003/0	Sans
327108	2.86	10	25	3	61	4	+0.003/0	Sans
327109	2.87	10	25	3	61	4	+0.003/0	Sans
327110	2.88	10	25	3	61	4	+0.003/0	Sans
327111	2.89	10	25	3	61	4	+0.003/0	Sans
200700	2.9	10	25	3	61	4	+0.003/0	Sans
327112	2.91	10	25	3	61	4	+0.003/0	Sans
327113	2.92	10	25	3	61	4	+0.003/0	Sans
327114	2.93	10	25	3	61	4	+0.003/0	Sans
327115	2.94	10	25	3	61	4	+0.003/0	Sans
200701	2.95	10	25	3	61	4	+0.003/0	Sans
327116	2.96	10	25	3	61	4	+0.003/0	Sans
200747	2.97	10	25	3	61	4	+0.003/0	Sans
321524	2.98	10	25	3	70	6	+0.003/0	Sans
321525	2.99	10	25	3	70	6	+0.003/0	Sans
321526	3	10	25	3	70	6	+0.003/0	Sans
321527	3.01	10	25	3	70	6	+0.003/0	Sans
321528	3.02	10	25	3	70	6	+0.003/0	Sans
321529	3.03	10	25	3	70	6	+0.003/0	Sans
321530	3.04	10	25	3	70	6	+0.003/0	Sans
321531	3.05	10	25	3	70	6	+0.003/0	Sans
321532	3.06	10	25	3	70	6	+0.003/0	Sans
321533	3.07	10	25	3	70	6	+0.003/0	Sans
321534	3.08	10	25	3	70	6	+0.003/0	Sans
321535	3.09	10	25	3	70	6	+0.003/0	Sans
321536	3.1	10		3	70	6	+0.003/0	Sans
321537	3.11	10		3	70	6	+0.003/0	Sans
321538	3.12	10		3	70	6	+0.003/0	Sans
321539	3.13	10		3	70	6	+0.003/0	Sans
321540	3.14	10		3	70	6	+0.003/0	Sans
321541	3.15	10		3	70	6	+0.003/0	Sans
321542	3.16	10		3	70	6	+0.003/0	Sans
321543	3.17	10		3	70	6	+0.003/0	Sans
321544	3.18	10		3	70	6	+0.003/0	Sans
321545	3.19	10		3	70	6	+0.003/0	Sans
321546	3.2	10		3	70	6	+0.003/0	Sans
321547	3.21	10		3	70	6	+0.003/0	Sans
321548	3.22	10		3	70	6	+0.003/0	Sans
321549	3.23	10		3	70	6	+0.003/0	Sans
321550	3.24	10		3	70	6	+0.003/0	Sans
321551	3.25	10		3	70	6	+0.003/0	Sans
321552	3.26	10		3	70	6	+0.003/0	Sans
321553	3.27	10		3	70	6	+0.003/0	Sans
321554	3.28	10		3	70	6	+0.003/0	Sans
321555	3.29	10		3	70	6	+0.003/0	Sans
321556	3.3	10		3	70	6	+0.003/0	Sans
321557	3.31	10		3	70	6	+0.003/0	Sans
321558	3.32	10		3	70	6	+0.003/0	Sans
321559	3.33	10		3	70	6	+0.003/0	Sans
321560	3.34	10		3	70	6	+0.003/0	Sans
321561	3.35	10		3	70	6	+0.003/0	Sans
321562	3.36	10		3	70	6	+0.003/0	Sans
321563	3.37	10		3	70	6	+0.003/0	Sans
321564	3.38	10		3	70	6	+0.003/0	Sans
321565	3.39	10		3	70	6	+0.003/0	Sans
321566	3.4	10		3	70	6	+0.003/0	Sans
321567	3.41	10		3	70	6	+0.003/0	Sans
321568	3.42	10		3	70	6	+0.003/0	Sans
321569	3.43	10		3	70	6	+0.003/0	Sans
321570	3.44	10		3	70	6	+0.003/0	Sans
321571	3.45	10		3	70	6	+0.003/0	Sans
321572	3.46	10		3	70	6	+0.003/0	Sans
321573	3.47	10		3	70	6	+0.003/0	Sans
321574	3.48	10		3	70	6	+0.003/0	Sans
321575	3.49	10		3	70	6	+0.003/0	Sans
321576	3.5	10		3	70	6	+0.003/0	Sans
321577	3.51	10		3	70	6	+0.003/0	Sans
321578	3.52	10		3	70	6	+0.003/0	Sans
321579	3.53	10		3	70	6	+0.003/0	Sans
321580	3.54	10		3	70	6	+0.003/0	Sans
321581	3.55	10		3	70	6	+0.003/0	Sans
321582	3.56	10		3	70	6	+0.003/0	Sans
321583	3.57	10		3	70	6	+0.003/0	Sans
321584	3.58	10		3	70	6	+0.003/0	Sans
321585	3.59	10		3	70	6	+0.003/0	Sans
321586	3.6	10		3	70	6	+0.003/0	Sans
321587	3.61	10		3	70	6	+0.003/0	Sans
321588	3.62	10		3	70	6	+0.003/0	Sans
321589	3.63	10		3	70	6	+0.003/0	Sans
321590	3.64	10		3	70	6	+0.003/0	Sans
321591	3.65	10		3	70	6	+0.003/0	Sans
321592	3.66	10		3	70	6	+0.003/0	Sans
321593	3.67	10		3	70	6	+0.003/0	Sans
321594	3.68	10		3	70	6	+0.003/0	Sans
321595	3.69	10		3	70	6	+0.003/0	Sans
321596	3.7	10		3	70	6	+0.003/0	Sans
321597	3.71	10		3	70	6	+0.003/0	Sans
321598	3.72	10		3	70	6	+0.003/0	Sans
321599	3.73	10		3	70	6	+0.003/0	Sans
321600	3.74	10		3	70	6	+0.003/0	Sans
321601	3.75	10		3	70	6	+0.003/0	Sans
321602	3.76	10		3	70	6	+0.003/0	Sans
321603	3.77	10		3	70	6	+0.003/0	Sans
321604	3.78	10		3	70	6	+0.003/0	Sans
321605	3.79	10		3	70	6	+0.003/0	Sans
321606	3.8	10		3	70	6	+0.003/0	Sans
321607	3.81	10		3	70	6	+0.003/0	Sans
321608	3.82	10		3	70	6	+0.003/0	Sans
321609	3.83	10		3	70	6	+0.003/0	Sans
321610	3.84	10		3	70	6	+0.003/0	Sans
321611	3.85	10		3	70	6	+0.003/0	Sans
321612	3.86	10		3	70	6	+0.003/0	Sans
321613	3.87	10		3	70	6	+0.003/0	Sans
321614	3.88	10		3	70	6	+0.003/0	Sans
321615	3.89	10		3	70	6	+0.003/0	Sans
321616	3.9	10		3	70	6	+0.003/0	Sans
321617	3.91	10		3	70	6	+0.003/0	Sans
321618	3.92	10		3	70	6	+0.003/0	Sans
321619	3.93	10		3	70	6	+0.003/0	Sans
321620	3.94	10		3	70	6	+0.003/0	Sans
321621	3.95	10		3	70	6	+0.003/0	Sans
321622	3.96	10		3	70	6	+0.003/0	Sans
321623	3.97	10		3	70	6	+0.003/0	Sans
321624	3.98	10		3	70	6	+0.003/0	Sans
321625	3.99	10		3	70	6	+0.003/0	Sans
321626	4	10		3	70	6	+0.003/0	Sans
321627	4.01	10		3	70	6	+0.003/0	Sans
321628	4.02	10		3	70	6	+0.003/0	Sans
321629	4.03	10		3	70	6	+0.003/0	Sans
321630	4.04	10		3	70	6	+0.003/0	Sans
321631	4.05	10		3	70	6	+0.003/0	Sans
321632	4.06	10		3	70	6	+0.003/0	Sans
321633	4.07	10		3	70	6	+0.003/0	Sans
321634	4.08	10		3	70	6	+0.003/0	Sans
321635	4.09	10		3	70	6	+0.003/0	Sans
321637	4.11	12		4	80	6	+0.003/0	Sans
321639	4.13	12		4	80	6	+0.003/0	Sans
321640	4.14	12		4	80	6	+0.003/0	Sans
321642	4.16	12		4	80	6	+0.003/0	Sans
321643	4.17	12		4	80	6	+0.003/0	Sans
321644	4.18	12		4	80	6	+0.003/0	Sans
321645	4.19	12		4	80	6	+0.003/0	Sans
321646	4.2	12		4	80	6	+0.003/0	Sans
321647	4.21	12		4	80	6	+0.003/0	Sans
321648	4.22	12		4	80	6	+0.003/0	Sans
321649	4.23	12		4	80	6	+0.003/0	Sans
321650	4.24	12		4	80	6	+0.003/0	Sans
321651	4.25	12		4	80	6	+0.003/0	Sans
321652	4.26	12		4	80	6	+0.003/0	Sans
321653	4.27	12		4	80	6	+0.003/0	Sans
321654	4.28	12		4	80	6	+0.003/0	Sans
321655	4.29	12		4	80	6	+0.003/0	Sans
321656	4.3	12		4	80	6	+0.003/0	Sans
321657	4.31	12		4	80	6	+0.003/0	Sans
321658	4.32	12		4	80	6	+0.003/0	Sans
321659	4.33	12		4	80	6	+0.003/0	Sans
321660	4.34	12		4	80	6	+0.003/0	Sans
321661	4.35	12		4	80	6	+0.003/0	Sans
321662	4.36	12		4	80	6	+0.003/0	Sans
321663	4.37	12		4	80	6	+0.003/0	Sans
321664	4.38	12		4	80	6	+0.003/0	Sans
321665	4.39	12		4	80	6	+0.003/0	Sans
321666	4.4	12		4	80	6	+0.003/0	Sans
321667	4.41	12		4	80	6	+0.003/0	Sans
321668	4.42	12		4	80	6	+0.003/0	Sans
321669	4.43	12		4	80	6	+0.003/0	Sans
321670	4.44	12		4	80	6	+0.003/0	Sans
321671	4.45	12		4	80	6	+0.003/0	Sans
321672	4.46	12		4	80	6	+0.003/0	Sans
321673	4.47	12		4	80	6	+0.003/0	Sans
321674	4.48	12		4	80	6	+0.003/0	Sans
321675	4.49	12		4	80	6	+0.003/0	Sans
321676	4.5	12		4	80	6	+0.003/0	Sans
321677	4.51	12		4	80	6	+0.003/0	Sans
321678	4.52	12		4	80	6	+0.003/0	Sans
321679	4.53	12		4	80	6	+0.003/0	Sans
321680	4.54	12		4	80	6	+0.003/0	Sans
321681	4.55	12		4	80	6	+0.003/0	Sans
321682	4.56	12		4	80	6	+0.003/0	Sans
321683	4.57	12		4	80	6	+0.003/0	Sans
321684	4.58	12		4	80	6	+0.003/0	Sans
321685	4.59	12		4	80	6	+0.003/0	Sans
321686	4.6	12		4	80	6	+0.003/0	Sans
321687	4.61	12		4	80	6	+0.003/0	Sans
321688	4.62	12		4	80	6	+0.003/0	Sans
321689	4.63	12		4	80	6	+0.003/0	Sans
321690	4.64	12		4	80	6	+0.003/0	Sans
321691	4.65	12		4	80	6	+0.003/0	Sans
321692	4.66	12		4	80	6	+0.003/0	Sans
321693	4.67	12		4	80	6	+0.003/0	Sans
321694	4.68	12		4	80	6	+0.003/0	Sans
321695	4.69	12		4	80	6	+0.003/0	Sans
321696	4.7	12		4	80	6	+0.003/0	Sans
321697	4.71	12		4	80	6	+0.003/0	Sans
321698	4.72	12		4	80	6	+0.003/0	Sans
321699	4.73	12		4	80	6	+0.003/0	Sans
321700	4.74	12		4	80	6	+0.003/0	Sans
321701	4.75	12		4	80	6	+0.003/0	Sans
321702	4.76	12		4	80	6	+0.003/0	Sans
321703	4.77	12		4	80	6	+0.003/0	Sans
321704	4.78	12		4	80	6	+0.003/0	Sans
321705	4.79	12		4	80	6	+0.003/0	Sans
321706	4.8	12		4	80	6	+0.003/0	Sans
321707	4.81	12		4	80	6	+0.003/0	Sans
321708	4.82	12		4	80	6	+0.003/0	Sans
321709	4.83	12		4	80	6	+0.003/0	Sans
321710	4.84	12		4	80	6	+0.003/0	Sans
321711	4.85	12		4	80	6	+0.003/0	Sans
321712	4.86	12		4	80	6	+0.003/0	Sans
321713	4.87	12		4	80	6	+0.003/0	Sans
321714	4.88	12		4	80	6	+0.003/0	Sans
321715	4.89	12		4	80	6	+0.003/0	Sans
321716	4.9	12		4	80	6	+0.003/0	Sans
321717	4.91	12		4	80	6	+0.003/0	Sans
321718	4.92	12		4	80	6	+0.003/0	Sans
321719	4.93	12		4	80	6	+0.003/0	Sans
321720	4.94	12		4	80	6	+0.003/0	Sans
321721	4.95	12		4	80	6	+0.003/0	Sans
321722	4.96	12		4	80	6	+0.003/0	Sans
321723	4.97	12		4	80	6	+0.003/0	Sans
321724	4.98	12		4	80	6	+0.003/0	Sans
321725	4.99	12		4	80	6	+0.003/0	Sans
321726	5	12		4	80	6	+0.003/0	Sans
321727	5.01	12		4	80	6	+0.003/0	Sans
321728	5.02	12		4	80	6	+0.003/0	Sans
321729	5.03	12		4	80	6	+0.003/0	Sans
321730	5.04	12		4	80	6	+0.003/0	Sans
321731	5.05	12		4	80	6	+0.003/0	Sans
321732	5.06	12		4	80	6	+0.003/0	Sans
321733	5.07	12		4	80	6	+0.003/0	Sans
321734	5.08	12		4	80	6	+0.003/0	Sans
321735	5.09	12		4	80	6	+0.003/0	Sans
321736	5.1	12		4	80	6	+0.003/0	Sans
321737	5.11	12		4	80	6	+0.003/0	Sans
321738	5.12	12		4	80	6	+0.003/0	Sans
321739	5.13	12		4	80	6	+0.003/0	Sans
321740	5.14	12		4	80	6	+0.003/0	Sans
321741	5.15	12		4	80	6	+0.003/0	Sans
321742	5.16	12		4	80	6	+0.003/0	Sans
321743	5.17	12		4	80	6	+0.003/0	Sans
321744	5.18	12		4	80	6	+0.003/0	Sans
321745	5.19	12		4	80	6	+0.003/0	Sans
321746	5.2	12		4	80	6	+0.003/0	Sans
321747	5.21	12		4	80	6	+0.003/0	Sans
321748	5.22	12		4	80	6	+0.003/0	Sans
321749	5.23	12		4	80	6	+0.003/0	Sans
321751	5.25	12		4	80	6	+0.003/0	Sans
321756	5.3	12		4	80	6	+0.003/0	Sans
321761	5.35	12		4	80	6	+0.003/0	Sans
321766	5.4	12		4	80	6	+0.003/0	Sans
321771	5.45	12		4	80	6	+0.003/0	Sans
321773	5.47	12		4	80	6	+0.003/0	Sans
321774	5.48	12		4	80	6	+0.003/0	Sans
321775	5.49	12		4	80	6	+0.003/0	Sans
321776	5.5	12		4	80	6	+0.003/0	Sans
321777	5.51	12		4	80	6	+0.003/0	Sans
321778	5.52	12		4	80	6	+0.003/0	Sans
321781	5.55	12		4	80	6	+0.003/0	Sans
321786	5.6	12		4	80	6	+0.003/0	Sans
321791	5.65	12		4	80	6	+0.003/0	Sans
321796	5.7	12		4	80	6	+0.003/0	Sans
321801	5.75	12		4	80	6	+0.003/0	Sans
321806	5.8	12		4	80	6	+0.003/0	Sans
321811	5.85	12		4	80	6	+0.003/0	Sans
321816	5.9	12		4	80	6	+0.003/0	Sans
321821	5.95	12		4	80	6	+0.003/0	Sans
321823	5.97	12		4	80	6	+0.003/0	Sans
321824	5.98	12		4	80	6	+0.003/0	Sans
321825	5.99	12		4	80	6	+0.003/0	Sans
321826	6	12		4	80	6	+0.003/0	Sans
321827	6.01	12		4	80	6	+0.003/0	Sans
321828	6.02	12		4	80	6	+0.003/0	Sans
321829	6.03	12		4	80	6	+0.003/0	Sans
321831	6.05	12		4	80	6	+0.003/0	Sans
321836	6.1	12		4	80	6	+0.003/0	Sans
321841	6.15	12		4	80	6	+0.003/0	Sans
321845	6.19	12		4	80	6	+0.003/0	Sans
342052	6.2	16		6	101	6	+0.003/0	Sans
342062	6.3	16		6	101	6	+0.003/0	Sans
342072	6.4	16		6	101	6	+0.003/0	Sans
342082	6.5	16		6	101	6	+0.003/0	Sans
342083	6.51	16		6	101	6	+0.003/0	Sans
342084	6.52	16		6	101	6	+0.003/0	Sans
342092	6.6	16		6	101	6	+0.003/0	Sans
342102	6.7	16		6	101	6	+0.003/0	Sans
342112	6.8	16		6	101	6	+0.003/0	Sans
342122	6.9	16		6	101	6	+0.003/0	Sans
342132	7	16		6	101	6	+0.003/0	Sans
200543	7.01	16	69	7	109	6	+0.003/0	Sans
342133	7.01	16		6	101	6	+0.003/0	Sans
342134	7.02	16		6	101	6	+0.003/0	Sans
342142	7.1	16		6	101	6	+0.003/0	Sans
342152	7.2	16		6	101	6	+0.003/0	Sans
342162	7.3	16		6	101	6	+0.003/0	Sans
342172	7.4	16		6	101	6	+0.003/0	Sans
342182	7.5	16		6	101	6	+0.003/0	Sans
342183	7.51	16		6	101	6	+0.003/0	Sans
342184	7.52	16		6	101	6	+0.003/0	Sans
342192	7.6	16		6	101	6	+0.003/0	Sans
342202	7.7	16		6	101	6	+0.003/0	Sans
342212	7.8	16		6	101	6	+0.003/0	Sans
342222	7.9	16		6	101	6	+0.003/0	Sans
342230	7.98	16		6	101	6	+0.003/0	Sans
342231	7.99	16		6	101	6	+0.003/0	Sans
342232	8	16		6	101	6	+0.003/0	Sans
342233	8.01	16		6	101	6	+0.003/0	Sans
342234	8.02	16		6	101	6	+0.003/0	Sans
342242	8.1	16		6	117	6	+0.003/0	Sans
342252	8.2	16		6	117	6	+0.003/0	Sans
342262	8.3	16		6	117	6	+0.003/0	Sans
342272	8.4	16		6	117	6	+0.003/0	Sans
342282	8.5	16		6	117	6	+0.003/0	Sans
342283	8.51	16		6	117	6	+0.003/0	Sans
342284	8.52	16		6	117	6	+0.003/0	Sans
342302	8.7	16		6	117	6	+0.003/0	Sans
342322	8.9	16		6	117	6	+0.003/0	Sans
342332	9	16		6	117	6	+0.003/0	Sans
342342	9.1	16		6	117	6	+0.003/0	Sans
342382	9.5	16		6	117	6	+0.003/0	Sans
342402	9.7	16		6	117	6	+0.003/0	Sans
342433	10.01	16		6	117	6	+0.003/0	Sans
200661	10.02	19	87	10	133	6	+0.003/0	Sans
964048	10.03	19	87	10	133	6	+0.003/0	Sans
963732	10.48	19	87	10	133	6	+0.003/0	Sans
963733	10.49	19	87	10	133	6	+0.003/0	Sans
200642	10.5	19	87	10	133	6	+0.003/0	Sans
963734	10.51	19	87	10	133	6	+0.003/0	Sans
963735	10.52	19	87	10	133	6	+0.003/0	Sans
200643	10.6	19	87	10	133	6	+0.003/0	Sans
963736	10.98	19	96	12	142	6	+0.003/0	Sans
963737	10.99	19	96	12	142	6	+0.003/0	Sans
200644	11	19	96	12	142	6	+0.003/0	Sans
963738	11.01	19	96	12	142	6	+0.003/0	Sans
963739	11.02	19	96	12	142	6	+0.003/0	Sans
963740	11.48	19	96	12	142	6	+0.003/0	Sans
963741	11.49	19	96	12	142	6	+0.003/0	Sans
200645	11.5	19	96	12	142	6	+0.003/0	Sans
963742	11.51	19	96	12	142	6	+0.003/0	Sans
963743	11.52	19	96	12	142	6	+0.003/0	Sans
200646	11.8	19	96	12	142	6	+0.003/0	Sans
963744	11.98	19	105	12	151	6	+0.003/0	Sans
963745	11.99	19	105	12	151	6	+0.003/0	Sans
200647	12	19	105	12	151	6	+0.003/0	Sans
963746	12.01	19	105	12	151	6	+0.003/0	Sans
200648	12.02	19	105	12	151	6	+0.003/0	Sans

Documents

Conditions de coupe
