DIXI 7240

Categorie: Milling
Sub-categorie: End mills Z = 2
Ø: 0.04 - 5.50
Coating: Without / TiAlN

Description: • Extra short slot drills with reinforced shank for general machining. • TiAlN coating improves tool life in ferrous materials.

Material to be machined

Steel + Pb

Low alloyed steel

High alloyed steel

DUPLEX stainless steel

Cast iron

Refractory alloy

Titanium

Cu alloy Silver Gold

Cu alloy difficult to machine

Plastic

Attributes

Products

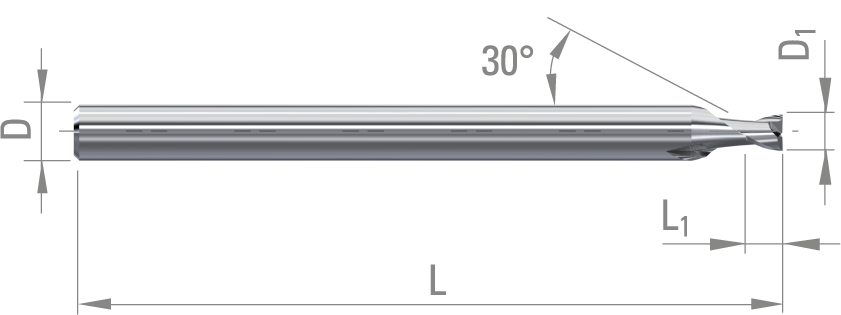

D1

L1

D

L

Coating

Ref.	D1	L1	D	L	Coating
954084	0.04	0.04	3	38	Without
954085	0.05	0.05	3	38	Without
951973	0.06	0.06	3	38	Without
954087	0.07	0.07	3	38	Without
954086	0.08	0.08	3	38	Without
954089	0.09	0.09	3	38	Without
64354	0.1	0.1	3	38	TiAlN
63609	0.1	0.1	3	38	Without
956316	0.12	0.12	3	38	TiAlN
954090	0.12	0.12	3	38	Without
64355	0.15	0.15	3	38	TiAlN
63608	0.15	0.15	3	38	Without
64356	0.2	0.2	3	38	TiAlN
63610	0.2	0.2	3	38	Without
64357	0.25	0.25	3	38	TiAlN
63678	0.25	0.25	3	38	Without
63679	0.3	0.3	3	38	Without
64253	0.3	0.3	3	38	TiAlN
64358	0.35	0.35	3	38	TiAlN
63680	0.35	0.35	3	38	Without
61443	0.4	0.4	3	38	TiAlN
56551	0.4	0.4	3	38	Without
64359	0.45	0.45	3	38	TiAlN
63681	0.45	0.45	3	38	Without
63682	0.5	0.5	3	38	Without
64254	0.5	0.5	3	38	TiAlN
64360	0.55	0.55	3	38	TiAlN
63683	0.55	0.55	3	38	Without
45571	0.6	0.6	3	38	Without
64361	0.6	0.6	3	38	TiAlN
64362	0.65	0.65	3	38	TiAlN
63684	0.65	0.65	3	38	Without
64363	0.7	0.7	3	38	TiAlN
63685	0.7	0.7	3	38	Without
64364	0.75	0.75	3	38	TiAlN
63686	0.75	0.75	3	38	Without
63687	0.8	0.8	3	38	Without
64255	0.8	0.8	3	38	TiAlN
64365	0.85	0.85	3	38	TiAlN
63688	0.85	0.85	3	38	Without
62538	0.9	0.9	3	38	TiAlN
63689	0.9	0.9	3	38	Without
64366	0.95	0.95	3	38	TiAlN
63690	0.95	0.95	3	38	Without
64367	1	1	3	38	TiAlN
50547	1	1	3	38	Without
64368	1.05	1.05	3	38	TiAlN
63691	1.05	1.05	3	38	Without
64369	1.1	1.1	3	38	TiAlN
63692	1.1	1.1	3	38	Without
63805	1.15	1.15	3	38	Without
64370	1.15	1.15	3	38	TiAlN
63806	1.2	1.2	3	38	Without
64371	1.2	1.2	3	38	TiAlN
63807	1.25	1.25	3	38	Without
64372	1.25	1.25	3	38	TiAlN
63808	1.3	1.3	3	38	Without
64373	1.3	1.3	3	38	TiAlN
63809	1.35	1.35	3	38	Without
64374	1.35	1.35	3	38	TiAlN
63810	1.4	1.4	3	38	Without
64375	1.4	1.4	3	38	TiAlN
63811	1.45	1.45	3	38	Without
64376	1.45	1.45	3	38	TiAlN
56840	1.5	1.5	3	38	TiAlN
50548	1.5	1.5	3	38	Without
63812	1.55	1.55	3	38	Without
64377	1.55	1.55	3	38	TiAlN
63813	1.6	1.6	3	38	Without
64378	1.6	1.6	3	38	TiAlN
63814	1.65	1.65	3	38	Without
64379	1.65	1.65	3	38	TiAlN
63815	1.7	1.7	3	38	Without
64380	1.7	1.7	3	38	TiAlN
63816	1.75	1.75	3	38	Without
64381	1.75	1.75	3	38	TiAlN
63817	1.8	1.8	3	38	Without
64382	1.8	1.8	3	38	TiAlN
63818	1.85	1.85	3	38	Without
64383	1.85	1.85	3	38	TiAlN
63819	1.9	1.9	3	38	Without
64384	1.9	1.9	3	38	TiAlN
63820	1.95	1.95	3	38	Without
64385	1.95	1.95	3	38	TiAlN
63821	2	2	6	50	Without
64386	2	2	6	50	TiAlN
63823	2.1	2.1	6	50	Without
64387	2.1	2.1	6	50	TiAlN
63824	2.2	2.2	6	50	Without
64388	2.2	2.2	6	50	TiAlN
63825	2.3	2.3	6	50	Without
64389	2.3	2.3	6	50	TiAlN
63826	2.4	2.4	6	50	Without
64390	2.4	2.4	6	50	TiAlN
63827	2.5	2.5	6	50	Without
64391	2.5	2.5	6	50	TiAlN
63828	3	3	6	50	Without
64392	3	3	6	50	TiAlN
63829	3.5	3.5	6	50	Without
64393	3.5	3.5	6	50	TiAlN
63830	4	4	6	50	Without
64394	4	4	6	50	TiAlN
63831	4.5	4.5	6	50	Without
64395	4.5	4.5	6	50	TiAlN
63832	5	5	6	50	Without
64397	5	5	6	50	TiAlN
63833	5.5	5.5	6	50	Without
64398	5.5	5.5	6	50	TiAlN
