DIXI 7306

Description: • Left hand end mills, right hand cut, with polished flute and reliefs. • Tools with high cutting and chip removal abilities. Recommended for excellent surface finishes in plastics, woods and HPL. The left-hand helix reduces burrs and improves the workpiece stability.

Plastic

Bois®

HPL®

Dibond®

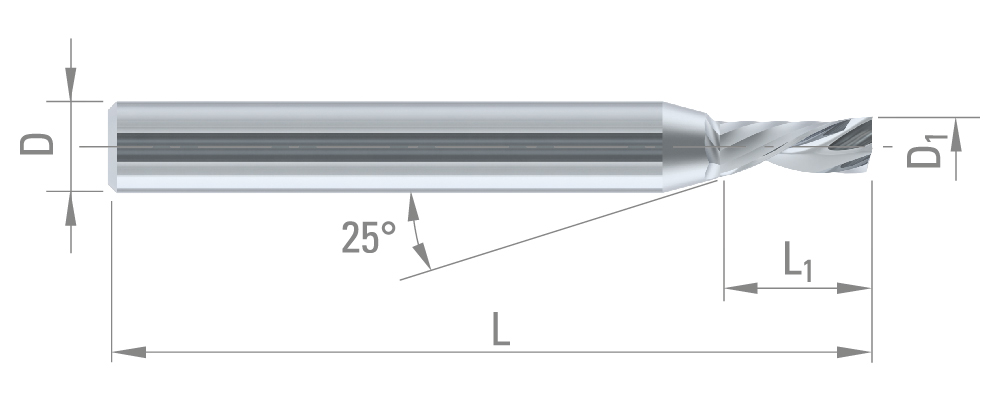

Ref.	D1	L1	D	L	Z	Coating
379705	1	4	3	30	1	Without
372632	1	4	3	38	1	Without
379706	1.5	6	3	30	1	Without
372633	1.5	6	3	38	1	Without
372634	1.5	8	3	60	1	Without
379707	2	8	3	30	1	Without
379708	2	8	4	60	1	Without
379709	2	8	6	50	1	Without
372635	2	8	2	30	1	Without
372636	2	8	3	38	1	Without
372637	2	8	3	60	1	Without
379710	2.5	8	2.5	38	1	Without
379711	2.5	8	3	30	1	Without
372639	2.5	8	3	38	1	Without
372640	2.5	8	3	60	1	Without
379712	3	10	3	30	1	Without
372641	3	8	3	60	1	Without
372642	3	10	3	38	1	Without
372643	3	15	3	50	1	Without
372644	3	8	4	60	1	Without
372645	3	10	4	40	1	Without
372646	3	15	4	50	1	Without
372647	3	10	6	50	1	Without
372648	3	10	6	60	1	Without
372649	3	12	6	60	1	Without
372650	3	20	6	60	1	Without
379713	3.5	12	4	50	1	Without
379717	3.5	12	5	50	1	Without
372651	3.5	12	3.5	50	1	Without
372652	3.5	10	4	60	1	Without
379718	4	8	4	50	1	Without
379720	4	25	4	60	1	Without
379721	4	12	6	101	1	Without
379723	4	21	6	60	1	Without
372653	4	12	4	50	1	Without
372654	4	12	4	60	1	Without
372655	4	16	4	60	1	Without
372656	4	22	4	60	1	Without
372657	4	30	4	70	1	Without
372658	4	12	6	50	1	Without
372659	4	12	6	60	1	Without
372660	4	12	6	80	1	Without
379724	5	16	5	50	1	Without
379726	5	12	6	60	1	Without
379727	5	25	6	60	1	Without
372661	5	16	5	60	1	Without
372662	5	30	5	70	1	Without
372663	5	16	6	60	1	Without
372664	5	20	6	60	1	Without
372665	5	25	8	80	1	Without
379728	6	12	6	60	1	Without
379729	6	32	8	80	1	Without
379730	6	38	8	80	1	Without
372666	6	20	6	50	1	Without
372667	6	20	6	60	1	Without
372668	6	24	6	70	1	Without
372669	6	30	6	70	1	Without
372670	6	38	6	80	1	Without
372671	6	20	8	80	1	Without
372672	6	25	8	80	1	Without
372673	6	30	8	80	1	Without
379731	8	32	8	80	1	Without
372674	8	23	8	60	1	Without
372675	8	25	8	80	1	Without
372676	8	33	8	80	1	Without
372677	8	38	8	80	1	Without
372678	10	24	10	75	1	Without
372679	10	30	10	75	1	Without
379732	12	51	12	100	1	Without
372680	12	30	12	80	1	Without
