POLY 4005-TC

Chargement en cours

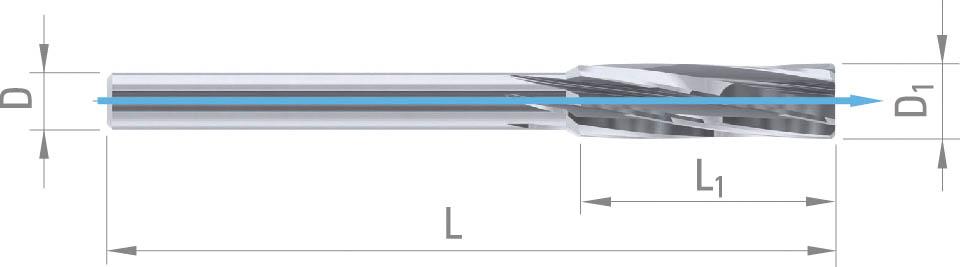

Ref.	D name	D1	L1	L2	D	L	Z	Tolerance	Coating	DXF file	Fichier STEP
Ref.969074 D name 2.97 D1 2.977 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969379 D name 2.99 D1 2.997 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969382 D name 3 D1 3.007 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969398 D name 3.01 D1 3.018 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969399 D name 3.02 D1 3.028 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969400 D name 3.05 D1 3.058 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969401 D name 3.08 D1 3.088 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969402 D name 3.1 D1 3.108 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969403 D name 3.11 D1 3.118 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969404 D name 3.15 D1 3.158 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969405 D name 3.18 D1 3.188 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969406 D name 3.2 D1 3.208 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969407 D name 3.21 D1 3.218 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969408 D name 3.25 D1 3.258 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969409 D name 3.28 D1 3.288 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969410 D name 3.3 D1 3.308 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969411 D name 3.31 D1 3.318 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969412 D name 3.35 D1 3.358 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969413 D name 3.38 D1 3.388 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969414 D name 3.4 D1 3.408 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969415 D name 3.41 D1 3.418 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969416 D name 3.45 D1 3.458 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969417 D name 3.49 D1 3.498 L1 20 D 2.5 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969418 D name 3.5 D1 3.508 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969421 D name 3.51 D1 3.518 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969422 D name 3.55 D1 3.558 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969423 D name 3.58 D1 3.588 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969424 D name 3.6 D1 3.608 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969425 D name 3.61 D1 3.618 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969426 D name 3.65 D1 3.658 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969427 D name 3.68 D1 3.688 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969428 D name 3.7 D1 3.708 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969429 D name 3.71 D1 3.718 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969430 D name 3.75 D1 3.758 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969431 D name 3.78 D1 3.788 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969432 D name 3.8 D1 3.808 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969433 D name 3.85 D1 3.858 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969434 D name 3.9 D1 3.908 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969435 D name 3.95 D1 3.958 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969436 D name 4 D1 4.008 L1 20 D 3 L 56 Z 4 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.993718 D name 4.04 D1 4.048 L1 22 D 3.5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969437 D name 4.1 D1 4.108 L1 22 D 3.5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969438 D name 4.2 D1 4.208 L1 22 D 3.5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969439 D name 4.3 D1 4.308 L1 22 D 3.5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969440 D name 4.4 D1 4.408 L1 22 D 3.5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969441 D name 4.5 D1 4.508 L1 22 D 4 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969442 D name 4.6 D1 4.608 L1 22 D 4 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969443 D name 4.7 D1 4.708 L1 22 D 4 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969444 D name 4.8 D1 4.808 L1 22 D 4 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969445 D name 4.9 D1 4.908 L1 22 D 4 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969446 D name 5 D1 5.008 L1 22 D 4 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969447 D name 5.1 D1 5.108 L1 22 D 4 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969448 D name 5.2 D1 5.208 L1 22 D 4 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969449 D name 5.3 D1 5.308 L1 22 D 4 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969450 D name 5.4 D1 5.408 L1 22 D 4 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969451 D name 5.5 D1 5.508 L1 22 D 5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969452 D name 5.6 D1 5.608 L1 22 D 5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969453 D name 5.7 D1 5.708 L1 22 D 5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969454 D name 5.8 D1 5.808 L1 22 D 5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969455 D name 5.9 D1 5.908 L1 22 D 5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969456 D name 6 D1 6.008 L1 22 D 5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969457 D name 6.1 D1 6.11 L1 22 D 5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969458 D name 6.2 D1 6.21 L1 22 D 5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969459 D name 6.3 D1 6.31 L1 22 D 5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969460 D name 6.4 D1 6.41 L1 22 D 5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
Ref.969461 D name 6.5 D1 6.51 L1 22 D 5 L 63 Z 6 Tolerance H7 Coating Without DXF file Fichier STEP
