DIXI 7342

Description: • High performance slot drills with reinforced shank developed for the machining of tough materials. • The extra smooth C-TOP coating improves tool life even at high temperatures in difficult to machine materials.

Steel + Pb

Low alloyed steel

High alloyed steel

DUPLEX stainless steel

Cast iron

Refractory alloy

Titanium

Cu alloy Silver Gold

Cu alloy difficult to machine

Gold

Silver

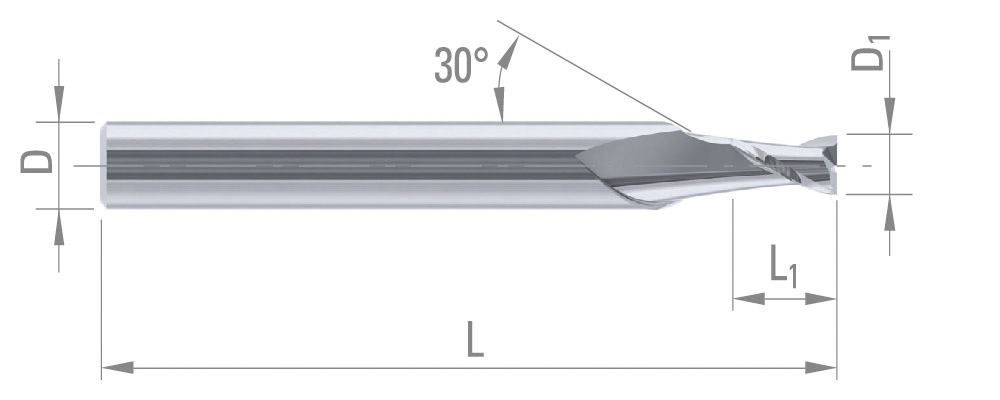

Ref.	D1	L1	D	L	Z	Coating
334850	0.1	0.15	4	38	2	Without
334910	0.1	0.15	4	38	2	C-TOP
334851	0.15	0.25	4	38	2	Without
334911	0.15	0.25	4	38	2	C-TOP
334852	0.2	0.3	4	38	2	Without
334912	0.2	0.3	4	38	2	C-TOP
334853	0.25	0.4	4	38	2	Without
334913	0.25	0.4	4	38	2	C-TOP
334854	0.3	0.45	4	38	2	Without
334914	0.3	0.45	4	38	2	C-TOP
334855	0.35	0.55	4	38	2	Without
334915	0.35	0.55	4	38	2	C-TOP
334856	0.4	0.6	4	38	2	Without
334916	0.4	0.6	4	38	2	C-TOP
334857	0.5	0.8	4	38	2	Without
334917	0.5	0.8	4	38	2	C-TOP
334858	0.6	0.9	4	38	2	Without
334918	0.6	0.9	4	38	2	C-TOP
334859	0.7	1.1	4	38	2	Without
334919	0.7	1.1	4	38	2	C-TOP
334860	0.8	1.2	4	38	2	Without
334920	0.8	1.2	4	38	2	C-TOP
334861	0.9	1.4	4	38	2	Without
334921	0.9	1.4	4	38	2	C-TOP
334862	1	1.5	4	38	2	Without
334922	1	1.5	4	38	2	C-TOP
334863	1.1	1.7	4	38	2	Without
334923	1.1	1.7	4	38	2	C-TOP
334864	1.2	1.8	4	38	2	Without
334924	1.2	1.8	4	38	2	C-TOP
334865	1.3	2	4	38	2	Without
334925	1.3	2	4	38	2	C-TOP
334866	1.4	2.1	4	38	2	Without
334926	1.4	2.1	4	38	2	C-TOP
334867	1.5	2.3	4	38	2	Without
334927	1.5	2.3	4	38	2	C-TOP
334868	1.6	2.4	4	38	2	Without
334928	1.6	2.4	4	38	2	C-TOP
334869	1.7	2.6	4	38	2	Without
334929	1.7	2.6	4	38	2	C-TOP
334870	1.8	2.7	4	38	2	Without
334930	1.8	2.7	4	38	2	C-TOP
334871	1.9	2.9	4	38	2	Without
334931	1.9	2.9	4	38	2	C-TOP
334872	2	3	4	38	2	Without
334932	2	3	4	38	2	C-TOP
334873	2.5	3.8	4	38	2	Without
334933	2.5	3.8	4	38	2	C-TOP
334874	3	4.5	6	55	2	Without
334934	3	4.5	6	55	2	C-TOP
334875	4	6	6	55	2	Without
334935	4	6	6	55	2	C-TOP
334876	5	7.5	6	55	2	Without
334936	5	7.5	6	55	2	C-TOP
334877	6	9	6	55	2	Without
334937	6	9	6	55	2	C-TOP
334878	8	12	8	64	2	Without
334938	8	12	8	64	2	C-TOP
334879	10	15	10	67	2	Without
334939	10	15	10	67	2	C-TOP
334880	12	18	12	74	2	Without
334940	12	18	12	74	2	C-TOP
