DIXI 1738

Categorie
Threading
Sub-categorie
Whirling tools
Ø
0.37 - 2.40
Coating
Without / CUTINOX
Z
3
Description
• Whirling tools, partial profile, developed for the milling of micro threads. • Thread according to NIHS 06-10 (ISO 1501 / DIN 14) and ISO 965 (DIN 13). • CUTINOX coating improves tool life, even at high temperatures, in low machinability materials.

Material to be machined

High alloyed steel
DUPLEX stainless steel
Refractory alloy
Titanium

Attributes

Products

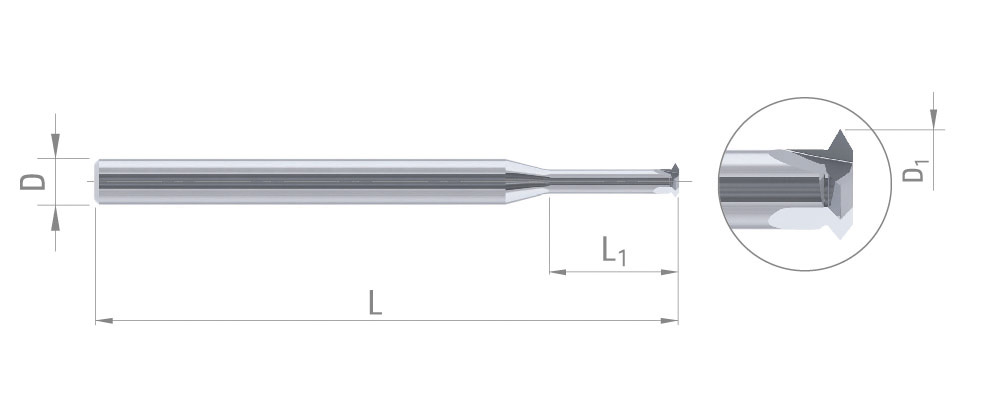

D1

-

L1

-

D

-

L

-

Z

-

Coating
Chargement en cours
Ref.306969
D name S0.50
Pitch 0.125
D1 0.37
L1 0.85
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.318544
D name S0.50
Pitch 0.125
D1 0.37
L1 0.85
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.318545
D name S0.60
Pitch 0.15
D1 0.44
L1 1.25
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.318623
D name S0.60
Pitch 0.15
D1 0.44
L1 1.25
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.985156
D name S0.70
Pitch 0.175
D1 0.52
L1 1.8
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.984319
D name S0.70
Pitch 0.175
D1 0.52
L1 1.8
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.965997
D name S0.80
Pitch 0.20
D1 0.59
L1 2.3
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.966008
D name S0.80
Pitch 0.20
D1 0.59
L1 2.3
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.965996
D name S0.90
Pitch 0.225
D1 0.67
L1 2.5
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.966007
D name S0.90
Pitch 0.225
D1 0.67
L1 2.5
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.966006
D name M1.00
Pitch 0.25
D1 0.71
L1 2.8
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.964485
D name M1.00
Pitch 0.25
D1 0.71
L1 2.8
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.965664
D name M1.20
Pitch 0.25
D1 0.91
L1 3.4
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.965943
D name M1.20
Pitch 0.25
D1 0.91
L1 3.4
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.965988
D name M1.40
Pitch 0.30
D1 1.05
L1 4
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.965998
D name M1.40
Pitch 0.30
D1 1.05
L1 4
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.965989
D name M1.40
Pitch 0.20
D1 1.15
L1 4
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.965999
D name M1.40
Pitch 0.20
D1 1.15
L1 4
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.965990
D name M1.60
Pitch 0.35
D1 1.19
L1 4.5
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.966000
D name M1.60
Pitch 0.35
D1 1.19
L1 4.5
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.965991
D name M1.80
Pitch 0.35
D1 1.39
L1 5.1
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.966001
D name M1.80
Pitch 0.35
D1 1.39
L1 5.1
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.965992
D name M2.00
Pitch 0.40
D1 1.53
L1 5.6
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.966002
D name M2.00
Pitch 0.40
D1 1.53
L1 5.6
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.965993
D name M2.20
Pitch 0.45
D1 1.67
L1 6.2
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.966003
D name M2.20
Pitch 0.45
D1 1.67
L1 6.2
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.965994
D name M2.50
Pitch 0.45
D1 1.97
L1 7
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.966004
D name M2.50
Pitch 0.45
D1 1.97
L1 7
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
Ref.965995
D name M3.00
Pitch 0.50
D1 2.4
L1 8.4
D 3
L 38
Z 3
Coating Without
DXF file
Fichier STEP
Ref.966005
D name M3.00
Pitch 0.50
D1 2.4
L1 8.4
D 3
L 38
Z 3
Coating CUTINOX
DXF file
Fichier STEP
