DIXI 7063

Description: • Left hand end mills, right hand cut, with polished flute faces and reliefs. • Tools with high cutting and chip removal abilities. Recommended for excellent surface finishes in plastics, woods and HPL. The left-hand helix reduces burrs and improves the workpiece stability.

Cast iron

Cu alloy Silver Gold

Cu alloy difficult to machine

Plastic

Gold

Silver

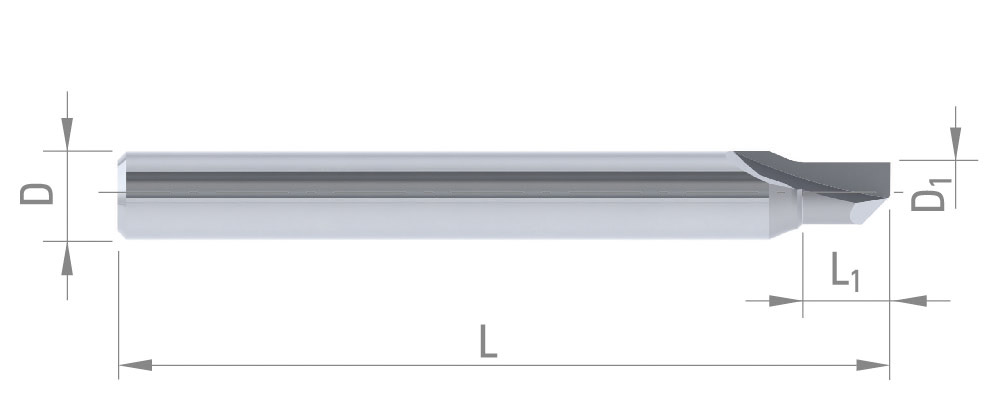

Ref.	D1	L1	D	L	Z	Coating
987593	0.4	0.8	4	35	1	Without
983250	0.5	1	4	35	1	Without
987594	0.6	1.2	4	35	1	Without
987595	0.7	1.5	4	35	1	Without
987596	0.8	1.5	4	35	1	Without
987581	0.9	1.5	4	35	1	Without
987582	1	2.5	4	35	1	Without
983251	1	1.5	4	35	1	Without
987597	1.1	2.5	4	35	1	Without
987598	1.2	2.5	4	35	1	Without
987599	1.3	2.5	4	35	1	Without
987583	1.4	2.5	4	35	1	Without
987600	1.5	3.5	4	35	1	Without
983252	1.5	2.5	4	35	1	Without
987585	1.6	3.5	4	35	1	Without
987586	1.7	3.5	4	35	1	Without
987601	1.8	3.5	4	35	1	Without
987602	1.9	3.5	4	35	1	Without
983253	2	4	4	35	1	Without
987603	2.2	4	4	35	1	Without
987604	2.5	4	4	35	1	Without
987605	2.8	4	4	35	1	Without
983254	3	4	4	35	1	Without
987584	4	5	4	35	1	Without
