DIXI 7060

Description: • Straight flute end mills with flat bottom and polished flute and reliefs. Tools dedicated to burr-free and deformation-free machining of materials with good machinability. • A typical application, the finishing of watch components. (micromecanics, watch and medical industries,etc.)

Cast iron

Cu alloy Silver Gold

Cu alloy difficult to machine

Plastic

Gold

Silver

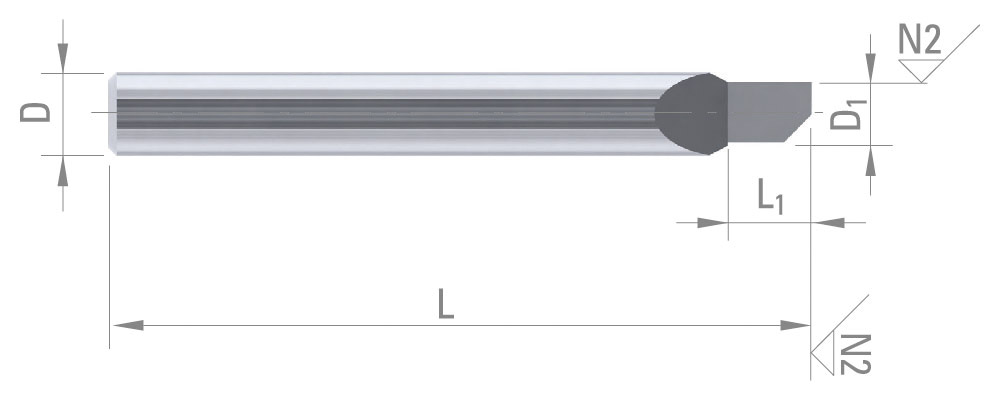

Ref.	D1	L1	D	L	Z	Coating
965456	0.5	1	4	35	1	Without
965457	0.6	1.2	4	35	1	Without
965458	0.7	1.5	4	35	1	Without
960645	0.8	1.5	4	35	1	Without
960646	0.9	1.5	4	35	1	Without
960647	1	1.5	4	35	1	Without
964328	1	2.5	4	35	1	Without
960648	1.1	2	4	35	1	Without
960649	1.2	2	4	35	1	Without
960650	1.3	2	4	35	1	Without
960651	1.4	2	4	35	1	Without
960652	1.5	2	4	35	1	Without
960653	1.6	2	4	35	1	Without
960654	1.7	2.5	4	35	1	Without
960655	1.8	2.5	4	35	1	Without
960656	1.9	2.5	4	35	1	Without
960657	2	2.5	4	35	1	Without
960658	2.5	3	4	35	1	Without
960659	3	3.5	4	42	1	Without
960660	3.5	4	4	42	1	Without
960661	4	5	4	42	1	Without
960662	4.5	6	6	50	1	Without
960663	5	7	6	50	1	Without
960664	6	7	8	50	1	Without
