DIXI 1708

Description: • Micro cutting taps, right-hand helix, developed for the tapping of blind holes. • Thread according to NIHS 06-10 (ISO 1501 / DIN 14). • DI-TOP coating improves tool life in ferrous and non-ferrous materials.

Steel + Pb

Cu alloy Silver Gold

Cu alloy difficult to machine

Gold

Silver

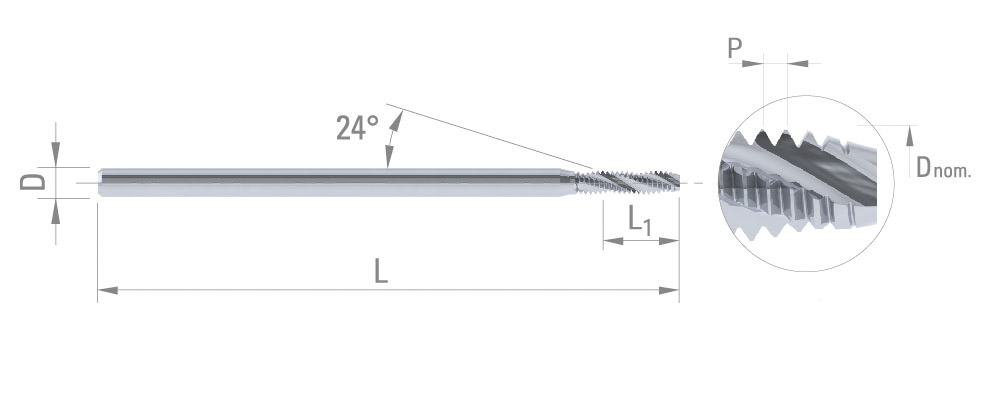

Ref.	D name	Pitch	L1	D	L	Z	Tolerance	Coating
986881	S0.30	0.08	1	1.5	30	3	NIHS-3G	Without
303483	S0.30	0.08	1	1.5	30	3	NIHS-3G	DI-TOP
986882	S0.35	0.09	1.5	1.5	30	3	NIHS-3G	Without
303484	S0.35	0.09	1.5	1.5	30	3	NIHS-3G	DI-TOP
986883	S0.40	0.10	2.5	1.5	30	3	NIHS-3G	Without
303485	S0.40	0.10	2.5	1.5	30	3	NIHS-3G	DI-TOP
984405	S0.50	0.125	3.5	1.5	30	3	NIHS-3G	Without
303486	S0.50	0.125	3.5	1.5	30	3	NIHS-3G	DI-TOP
983633	S0.60	0.15	4	1.5	30	3	NIHS-3G	Without
303487	S0.60	0.15	4	1.5	30	3	NIHS-3G	DI-TOP
986884	S0.70	0.175	4	1.5	30	3	NIHS-3G	Without
303488	S0.70	0.175	4	1.5	30	3	NIHS-3G	DI-TOP
986885	S0.80	0.20	4	1.5	30	3	NIHS-3G	Without
303489	S0.80	0.20	4	1.5	30	3	NIHS-3G	DI-TOP
986886	S0.90	0.225	4	1.5	30	3	NIHS-3G	Without
303490	S0.90	0.225	4	1.5	30	3	NIHS-3G	DI-TOP
986887	S1.00	0.25	4	1.5	30	3	NIHS-3G	Without
303491	S1.00	0.25	4	1.5	30	3	NIHS-3G	DI-TOP
986888	S1.20	0.25	5	1.5	30	3	NIHS-3G	Without
303492	S1.20	0.25	5	1.5	30	3	NIHS-3G	DI-TOP
986889	S1.40	0.30	5	1.5	30	3	NIHS-3G	Without
303493	S1.40	0.30	5	1.5	30	3	NIHS-3G	DI-TOP
