DIXI 1712 R

Description: • Micro cutting taps developed for the machining of materials with good machinability. • Thread according to NIHS 06-10 (ISO 1501 / DIN 14).

Steel + Pb

Cu alloy Silver Gold

Gold

Silver

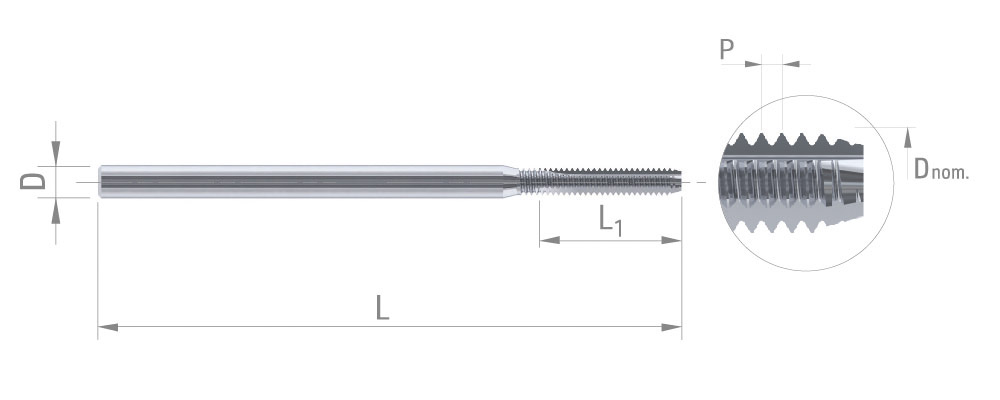

Ref.	D name	Pitch	L1	D	L	Z	Tolerance	Coating
62353	M1.50	0.30	6	2	38	3	ISO2-6H	Without
62354	M2.00	0.40	11	2.5	43	3	ISO2-6H	Without
62326	S0.30	0.08	1	1.5	30	3	NIHS-3G	Without
965642	S0.35	0.09	1.5	1.5	30	3	NIHS-3G	Without
62327	S0.40	0.10	2	1.5	30	3	NIHS-3G	Without
62328	S0.40	0.10	2.5	1.5	30	3	NIHS-3G+	Without
62329	S0.50	0.125	2.5	1.5	30	3	NIHS-3G	Without
62330	S0.50	0.125	3.5	1.5	30	3	NIHS-3G+	Without
62331	S0.60	0.15	3	1.5	30	3	NIHS-3G	Without
62332	S0.60	0.15	4	1.5	30	3	NIHS-3G+	Without
62334	S0.70	0.175	3	1.5	30	3	NIHS-3G	Without
62335	S0.70	0.175	4	1.5	30	3	NIHS-3G+	Without
62337	S0.80	0.20	3.5	1.5	30	3	NIHS-3G	Without
62338	S0.80	0.20	4	1.5	30	3	NIHS-3G+	Without
62342	S0.90	0.225	4	1.5	30	3	NIHS-3G	Without
62343	S0.90	0.225	4	1.5	30	3	NIHS-3G+	Without
62345	S1.00	0.25	4	1.5	30	3	NIHS-3G	Without
62346	S1.00	0.25	4	1.5	30	3	NIHS-3G+	Without
62348	S1.20	0.25	5	1.5	30	3	NIHS-3G	Without
62351	S1.40	0.30	5	1.5	30	3	NIHS-3G	Without
