DIXI 1737

Categorie: Threading
Sub-categorie: Whirling tools
Ø: 0.37 - 2.40
Coating: Without / C-TOP / DRYCUT
Z: 3

Description: • Whirling tools, full profile, developed for the milling of micro threads. No burrs thanks to the full profile. • Thread according to NIHS 06-10 (ISO 1501 / DIN 14) and ISO 965 (DIN 13). • The extra smooth C-TOP coating improves tool life, even at high temperatures, in difficult to machine materials. DRYCUT coating improves tool life in non-ferrous materials.

Material to be machined

High alloyed steel

DUPLEX stainless steel

Refractory alloy

Titanium

Cu alloy Silver Gold

Cu alloy difficult to machine

Plastic

Gold

Silver

Attributes

Products

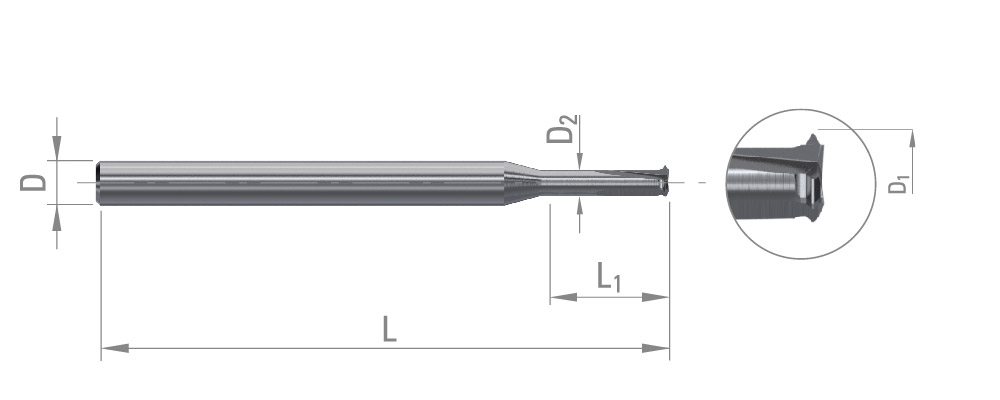

D1

L1

D

L

Z

Coating

Ref.	D name	Pitch	D1	L1	D	L	Z	Coating
378072	S0.50	0.125	0.37	0.85	3	38	3	Without
378089	S0.50	0.125	0.37	0.85	3	38	3	C-TOP
378351	S0.50	0.125	0.37	0.85	3	38	3	DRYCUT
378073	S0.60	0.15	0.44	1.25	3	38	3	Without
378090	S0.60	0.15	0.44	1.25	3	38	3	C-TOP
378352	S0.60	0.15	0.44	1.25	3	38	3	DRYCUT
378074	S0.70	0.175	0.52	1.8	3	38	3	Without
378091	S0.70	0.175	0.52	1.8	3	38	3	C-TOP
378353	S0.70	0.175	0.52	1.8	3	38	3	DRYCUT
378075	S0.80	0.20	0.59	2.3	3	38	3	Without
378092	S0.80	0.20	0.59	2.3	3	38	3	C-TOP
378354	S0.80	0.20	0.59	2.3	3	38	3	DRYCUT
378076	S0.90	0.225	0.67	2.5	3	38	3	Without
378093	S0.90	0.225	0.67	2.5	3	38	3	C-TOP
378355	S0.90	0.225	0.67	2.5	3	38	3	DRYCUT
378080	M1.00	0.25	0.71	2.8	3	38	3	Without
378097	M1.00	0.25	0.71	2.8	3	38	3	C-TOP
378359	M1.00	0.25	0.71	2.8	3	38	3	DRYCUT
378077	S1.00	0.25	0.74	2.8	3	38	3	Without
378094	S1.00	0.25	0.74	2.8	3	38	3	C-TOP
378356	S1.00	0.25	0.74	2.8	3	38	3	DRYCUT
378081	M1.20	0.25	0.91	3.4	3	38	3	Without
378098	M1.20	0.25	0.91	3.4	3	38	3	C-TOP
378360	M1.20	0.25	0.91	3.4	3	38	3	DRYCUT
378078	S1.20	0.25	0.94	3.4	3	38	3	Without
378095	S1.20	0.25	0.94	3.4	3	38	3	C-TOP
378357	S1.20	0.25	0.94	3.4	3	38	3	DRYCUT
378082	M1.40	0.30	1.05	4	3	38	3	Without
378099	M1.40	0.30	1.05	4	3	38	3	C-TOP
378361	M1.40	0.30	1.05	4	3	38	3	DRYCUT
378079	S1.40	0.30	1.08	4	3	38	3	Without
378096	S1.40	0.30	1.08	4	3	38	3	C-TOP
378358	S1.40	0.30	1.08	4	3	38	3	DRYCUT
378083	M1.60	0.35	1.19	4.5	3	38	3	Without
378100	M1.60	0.35	1.19	4.5	3	38	3	C-TOP
378362	M1.60	0.35	1.19	4.5	3	38	3	DRYCUT
378084	M1.80	0.35	1.39	5.1	3	38	3	Without
378101	M1.80	0.35	1.39	5.1	3	38	3	C-TOP
378363	M1.80	0.35	1.39	5.1	3	38	3	DRYCUT
378085	M2.00	0.40	1.53	5.6	3	38	3	Without
378102	M2.00	0.40	1.53	5.6	3	38	3	C-TOP
378364	M2.00	0.40	1.53	5.6	3	38	3	DRYCUT
378086	M2.20	0.45	1.67	6.2	3	38	3	Without
378103	M2.20	0.45	1.67	6.2	3	38	3	C-TOP
378365	M2.20	0.45	1.67	6.2	3	38	3	DRYCUT
378087	M2.50	0.45	1.97	7	3	38	3	Without
378104	M2.50	0.45	1.97	7	3	38	3	C-TOP
378366	M2.50	0.45	1.97	7	3	38	3	DRYCUT
378088	M3.00	0.50	2.4	8.4	3	38	3	Without
378105	M3.00	0.50	2.4	8.4	3	38	3	C-TOP
378367	M3.00	0.50	2.4	8.4	3	38	3	DRYCUT

Documents

Cutting conditions
