DIXI 1738 WM-701S

Description: • Whirling tools, partial profile, developed for the milling of micro threads. • Thread according to NIHS 06-10 (ISO 1501 / DIN 14) and ISO 965 (DIN 13). • CUTINOX coating improves tool life, even at high temperatures, in low machinability materials.

Steel + Pb

Low alloyed steel

High alloyed steel

DUPLEX stainless steel

Cast iron

Refractory alloy

Titanium

Cu alloy Silver Gold

Cu alloy difficult to machine

Plastic

Al 4 8 si

Al 8 13 si

Bois®

Gold

Silver

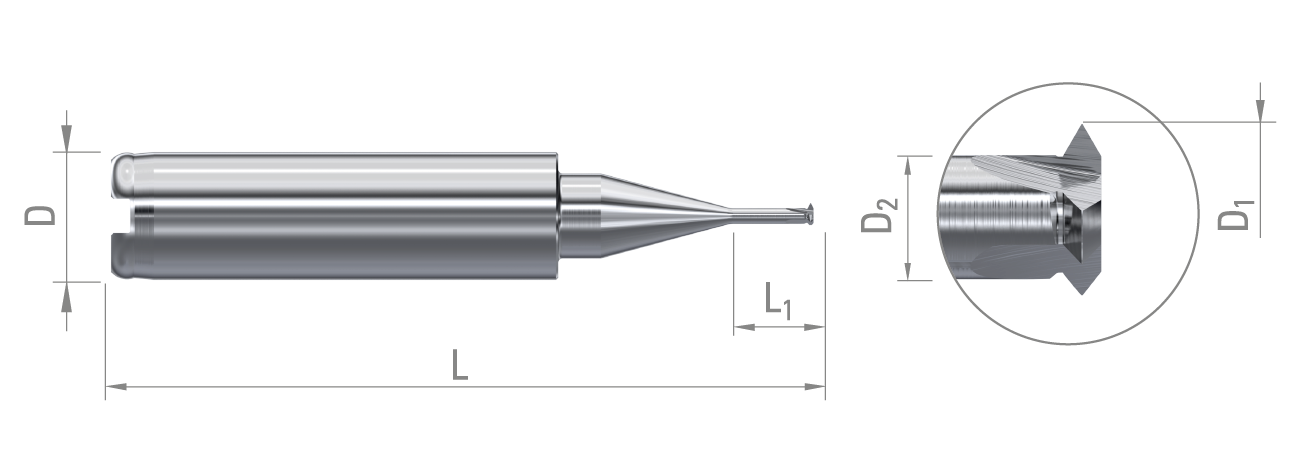

Ref.	D name	Pitch	D1	L1	D2	D	L	Z	Coating
337912	S 0.50	0.125	0.37	0.85	0.23	6	33	3	Without
336545	S 0.60	0.15	0.44	1.25	0.27	6	33	3	Without
306846	S 0.70	0.175	0.52	1.8	0.31	6	33	3	Without
307475	S0.80	0.20	0.62	2.3		6	33	3	Without
306998	S 1.00	0.25	0.74	2.8	0.45	6	33	3	Without
