DIXI 1661

Categorie
Threading
Sub-categorie
Ø
45.00 - 45.00
Coating
Without
Z
94
Description
• Hob cutters developed for the external thread milling on sliding head turning machines. Allow short cycle times and excellent thread quality. • Cutting geometry for radiused root. • Thread according to NIHS 06-10 (ISO 1501 / DIN 14).

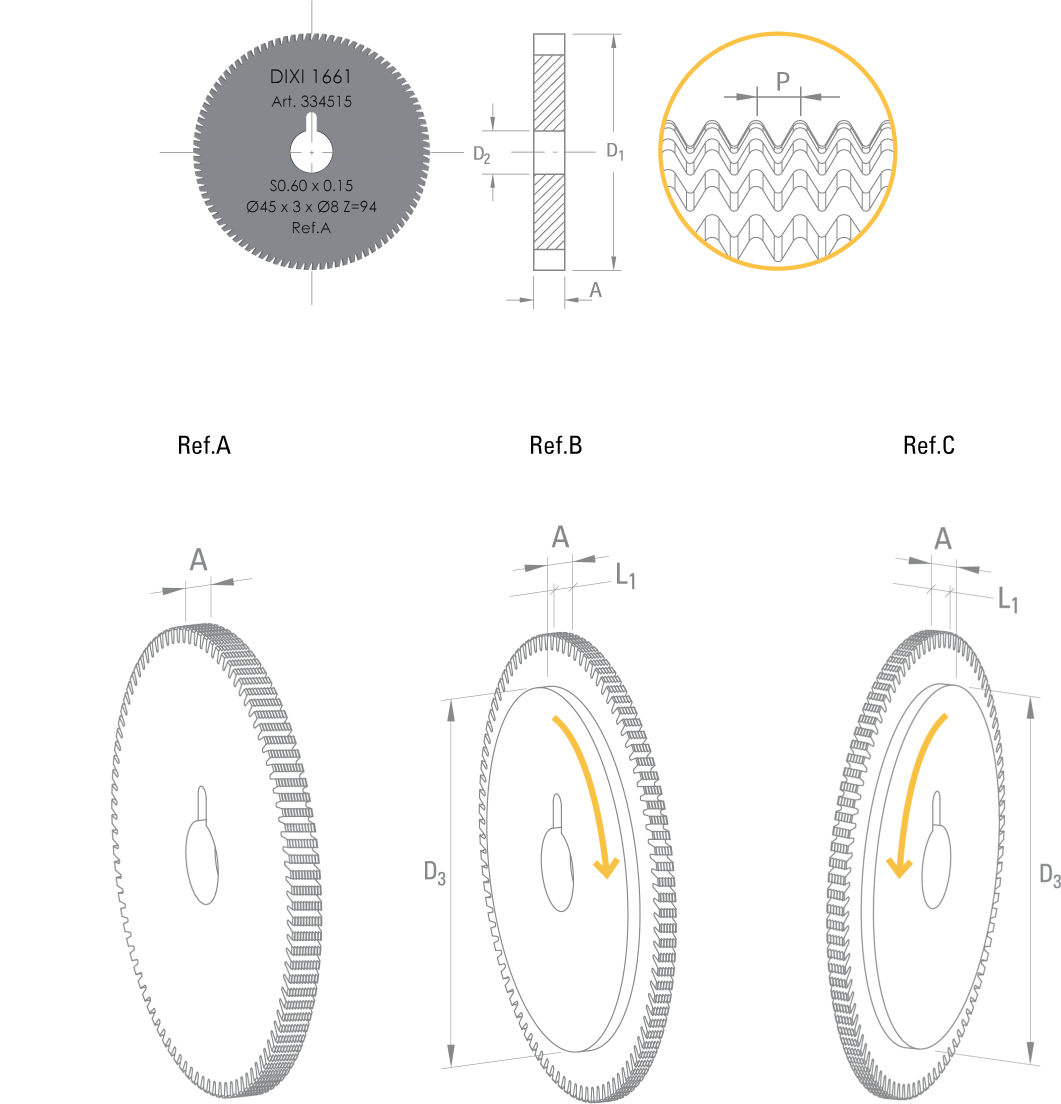

Attributes

Products

D1

-

D2

-

D3

-

Z

-

A

-

L1

-

Coating
Ref. D name Pitch D1 D2 D3 Z A L1 Ref. Type Coating DXF file Fichier STEP
334510 S0.400.10458359431BWithout
327631 S0.400.10458359431CWithout
334511 S0.500.125458359431.1BWithout
334512 S0.500.125458359431.1CWithout
334513 S0.600.15458359431.35BWithout
334514 S0.600.15458359431.35CWithout
334515 S0.600.15458359433AWithout
334516 S0.700.175458359431.6BWithout
334517 S0.700.175458359431.6CWithout
334518 S0.700.175458359433AWithout
334519 S0.800.20458359431.8BWithout
334520 S0.800.20458359431.8CWithout
334521 S0.800.20458359433AWithout
334522 S0.900.225458359432BWithout
334523 S0.900.225458359432CWithout
334524 S0.900.225458359433AWithout
334525 S1.000.25458359433AWithout
334526 S1.400.30458359433AWithout
