DIXI 2581

Description: • Boring tools developed for the boring of through holes. • Used in a fixed position by turning or assembled on fine boring heads.

Steel + Pb

Low alloyed steel

High alloyed steel

DUPLEX stainless steel

Cast iron

Refractory alloy

Titanium

Cu alloy Silver Gold

Cu alloy difficult to machine

Plastic

Gold

Silver

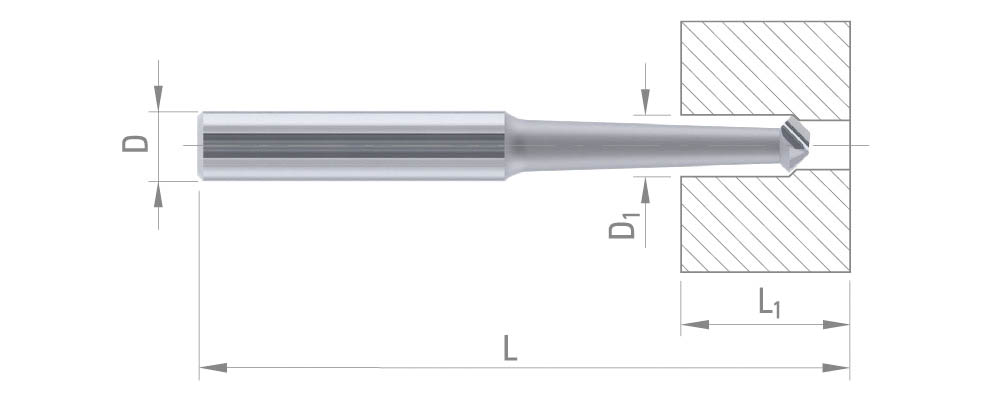

Ref.	D1	L1	D	L	Coating
36093	0.5	3	4	25	Without
36094	0.8	4	4	25	Without
33869	1	4	4	25	Without
33870	1.2	6	4	25	Without
33871	1.5	7	4	28	Without
33872	1.7	7	4	28	Without
33873	2	9	4	30	Without
33879	2	9	6	38	Without
33874	2.2	9	4	30	Without
33875	2.5	12	4	33	Without
33880	2.5	12	6	40	Without
33876	3	14	4	35	Without
33881	3	14	6	42	Without
740	3	17	8	47	Without
742	3	17	10	45	Without
33877	3.5	14	4	35	Without
33878	4	17	4	38	Without
33882	4	17	6	45	Without
741	4	21	8	51	Without
743	4	21	10	49	Without
745	5	23	4	38	Without
746	5	22	6	52	Without
752	5	22	8	52	Without
757	5	22	10	50	Without
747	6	24	6	52	Without
753	6	25	8	55	Without
758	6	25	10	54	Without
754	7	28	8	60	Without
759	7	28	10	56	Without
749	8	32	6	52	Without
766	8	30	12	70	Without
755	9	45	8	65	Without
760	9	32	10	65	Without
751	10	40	6	60	Without
761	10	32	10	65	Without
767	10	40	12	80	Without
756	11	54	8	70	Without
762	12	45	10	70	Without
768	13	60	12	90	Without
771	13	60	16	115	Without
5661	13	54	8	78	Without
763	13	55	10	80	Without
769	15	70	12	100	Without
772	15	60	16	115	Without
764	15	75	10	100	Without
770	18	70	12	100	Without
773	18	75	16	115	Without
765	18	75	10	100	Without
