DIXI 2580

Description: • Boring tools developed for the boring of blind and through holes. • Used in a fixed position by turning or assembled on fine boring heads.

Steel + Pb

Low alloyed steel

High alloyed steel

DUPLEX stainless steel

Cast iron

Refractory alloy

Titanium

Cu alloy Silver Gold

Cu alloy difficult to machine

Plastic

Gold

Silver

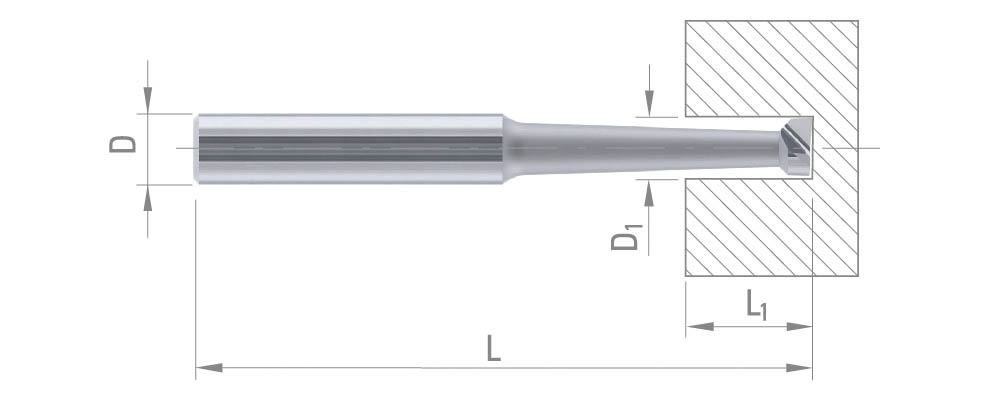

Ref.	D1	L1	D	L	Coating
36091	0.5	3	4	25	Without
36092	0.8	4	4	25	Without
33855	1	4	4	25	Without
33856	1.2	6	4	25	Without
33857	1.5	7	4	28	Without
33858	1.7	7	4	28	Without
33859	2	9	4	30	Without
33865	2	9	6	38	Without
33860	2.2	9	4	30	Without
33861	2.5	12	4	33	Without
33866	2.5	12	6	40	Without
790	3	17	8	47	Without
792	3	17	10	45	Without
33862	3	14	4	35	Without
33867	3	14	6	42	Without
33863	3.5	14	4	35	Without
791	4	21	8	51	Without
793	4	21	10	49	Without
33864	4	17	4	38	Without
33868	4	17	6	45	Without
794	5	23	4	38	Without
795	5	22	6	52	Without
801	5	22	8	52	Without
806	5	22	10	50	Without
796	6	24	6	52	Without
802	6	25	8	55	Without
807	6	25	10	54	Without
797	7	30	6	52	Without
803	7	28	8	60	Without
808	7	28	10	56	Without
798	8	32	6	52	Without
815	8	30	12	70	Without
809	9	32	10	65	Without
800	10	40	6	60	Without
804	10	45	8	65	Without
810	10	32	10	65	Without
816	10	40	12	80	Without
805	12	54	8	70	Without
811	12	45	10	70	Without
812	13	55	10	80	Without
817	13	60	12	90	Without
820	13	60	16	115	Without
5603	13	54	8	78	Without
813	15	75	10	100	Without
818	15	70	12	100	Without
821	15	60	16	115	Without
814	18	75	10	100	Without
819	18	70	12	100	Without
822	18	75	16	115	Without
824	20	75	16	115	Without
