DIXI 1719-S R NO GO

Categorie
Threading
Sub-categorie
Gauges
Description
• Solid carbide thread gauges dedicated to the pitch diameter inspection of 3G and 4H left hand threads according to NIHS 06-10 (ISO 1501 / DIN 14). • Gauges tolerances according to NIHS 06-12.

Attributes

Products

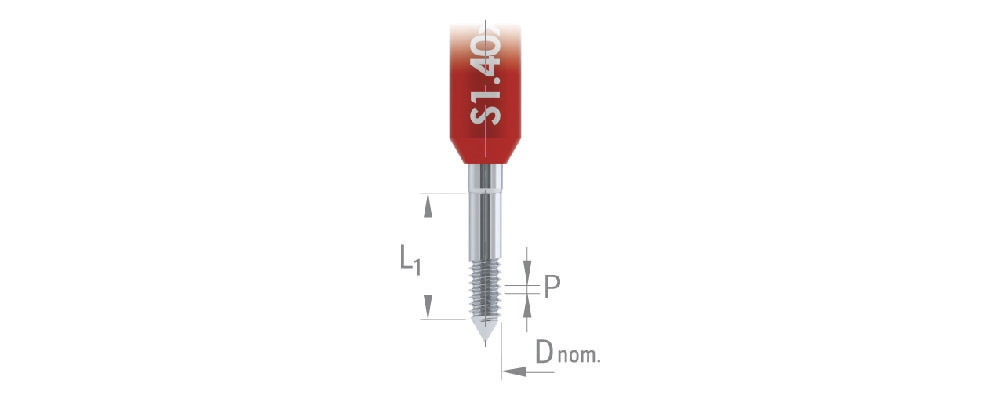

L1

-

Ref. D name Pitch L1 Tolerance DXF file Fichier STEP
965312 S0.300.0814H/3G
965313 S0.350.091.34H/3G
965314 S0.400.1024H/3G
965315 S0.500.1252.54H/3G
965316 S0.600.1534H/3G
965317 S0.700.17534H/3G
965318 S0.800.203.54H/3G
965319 S0.900.22544H/3G
965320 S1.000.2544H/3G
965321 S1.200.2554H/3G
965322 S1.400.3054H/3G
