DIXI 7920

Categorie: Threading
Sub-categorie: Thread mills
Ø: 2.10 - 7.90
Coating: Without / TiAlN
Z: 3 / 4

Description: • UN straight flute thread mills developed for general machining. No burrs thanks to the full profile. • Thread according to ISO 5864 (ASME B1.1). • TiAlN coating improves tool life in ferrous materials.

Material to be machined

Steel + Pb

Low alloyed steel

High alloyed steel

DUPLEX stainless steel

Cast iron

Titanium

Cu alloy Silver Gold

Cu alloy difficult to machine

Al

Plastic

Gold

Silver

Attributes

Products

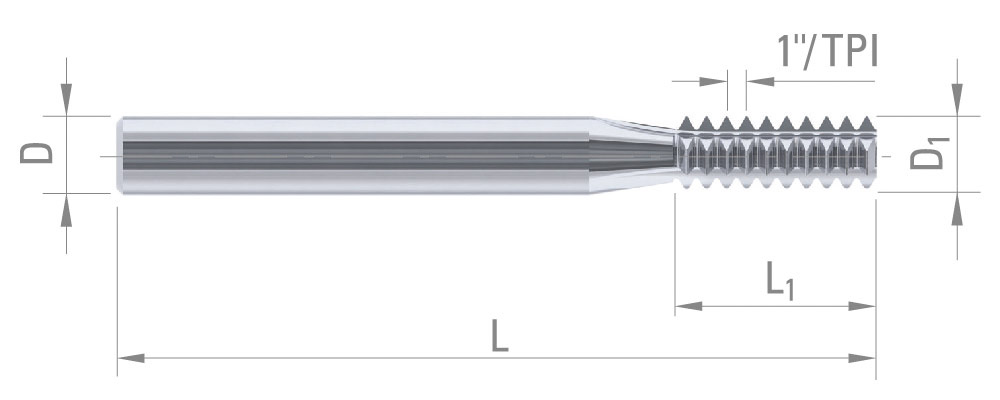

D1

-

L1

-

D

-

L

-

Z

-

Coating

Ref.	Pitch	D1	L1	D	L	Z	Int/Ext	Coating	DXF file	Fichier STEP
41582	N°5-40 UNC	2.1	4.44	3	38	3		Without
953798	N°5-40 UNC	2.1	4.44	3	38	3		TiAlN
41583	N°8-32 UNC	3	6.35	4	42	3		Without
39811	N°8-36 UNF	3	6.35	4	42	3		Without
953799	N°8-36 UNF	3	6.35	4	42	3		TiAlN
65997	N°8-32 UNC	3	6.35	4	42	3		TiAlN
41584	N°12-28 UNF	3.6	8.16	4	42	3		Without
64133	N°12-28 UNF	3.6	8.16	4	42	3		TiAlN
39813	5/16"-32 UNEF	5.9	14.28	6	57	3		Without
953806	5/16"-32 UNEF	5.9	14.28	6	57	3		TiAlN
39815	7/16"-28 UNEF	7.9	19.95	8	63	4		Without
953812	7/16"-28 UNEF	7.9	19.95	8	63	4		TiAlN

Documents

Cutting conditions
